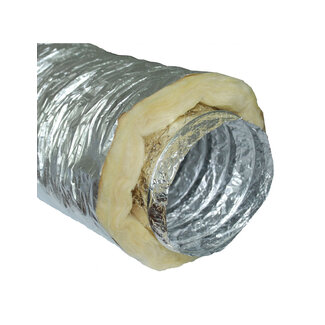

Sonoconnect is a range of fully flexible thermal and acoustic insulated aluminium laminate hoses suitable for application in mechanical ventilation systems, air handling systems and heat recovery where high demands are placed on the acoustic and thermal properties of the flexible hose.

Sonoconnect is designed to counteract speech noise or noise caused by components in the main duct.

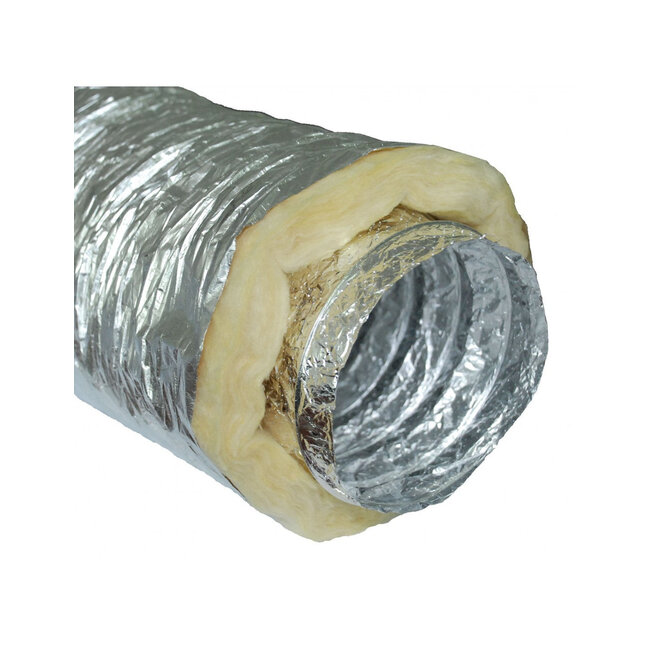

Construction: sonoconnect consists of a micro-perforated aluconnect inner hose (covered with a foil to ensure no glass fibres enter the airflow, type LS25J), 25 mm or 50 mm insulation and an outer jacket "jakece connect" or one of the aluconnect hoses. The jakece connect is a multi-layer polyester laminate sleeve.

Length = 10 metres
Diameter = Ø 406 mm

Advantages:

• Easy to cut to size and both ends taped or attached with hose clamp (silencer).
• Supplied in standard lengths of 10 metres, compressed to 1 metre and packed in a box.
• Packaged individually.
• Low cost for transport and logistics.
• Easy to install on round or oval pipes.
• No special tools required for cutting or fixing.
• No toxic gases are released in case of fire.
• The products are tested for fire resistance.
