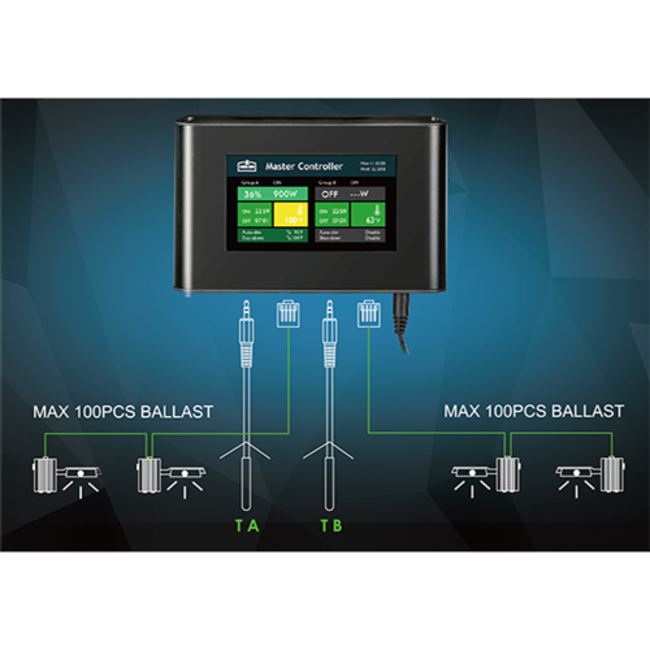

Lumen King Master Controller to control the Lumen King 1000W electronic ballasts and the Lumen King | LED 630w 1m2

Master controller is available to control two light groups in a greenhouse.

Output 0-11.5v adjustable DC voltage to control the output power of the ballast or switch the ballast on/off. The controller operates in a 24-hour time cycle.

The controller also has the ability to simulate the sunrise and sunset cycle of 10-60 minutes. Each of the two illuminated group channels has an overheat protection function that can be set as required.

You can use the LCD touch screen to easily view and adjust the current settings for each channel. Moreover, the controller is portable, easy to install and operate.

• Output range - 10% ~ 115%
• Number of ballasts per output 100 max.
• Max cable length per group 100 M
• Control voltage outputs 2 Group, A/B
• Temperature sensor 2 Group, A/B
• Overheating protection Yes
• Ballast type setting: 1000W/945W/750W/630W/600W/500W/315W/Not sure
• Alarm port: 2 groups, NO/NC
• ECM port: 2 groups, A/B
• Input voltage 5VDC/2000mA
