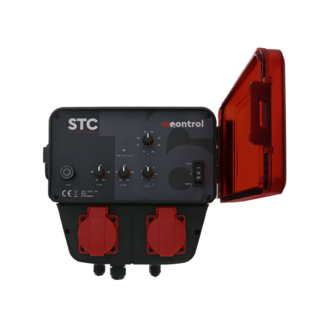

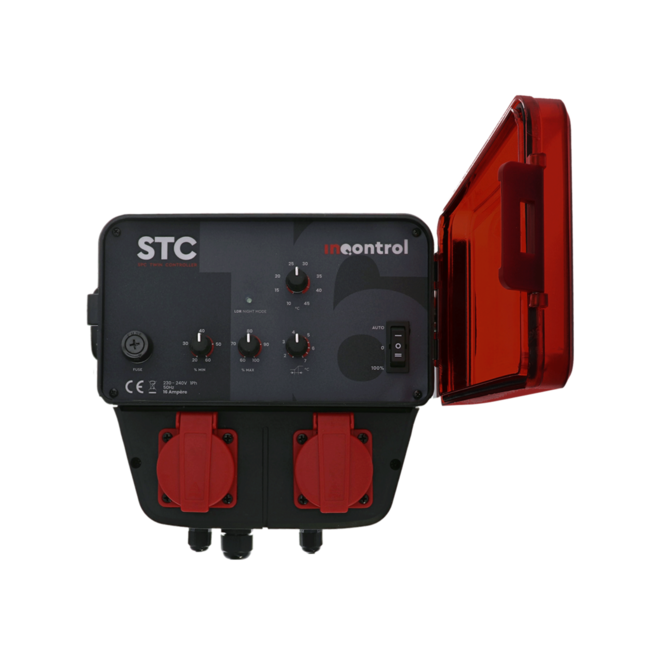

The Inqontrol STC is a software-controlled climate controller. The STC is suitable for one or two fans. The STC also has an LDR (light sensor) and an NTC (temperature sensor).

The controller combines mechanical operation of fan speed with the latest digital temperature measurement technology. The result is a completely silent, dual-speed fan controller with highly accurate temperature control.

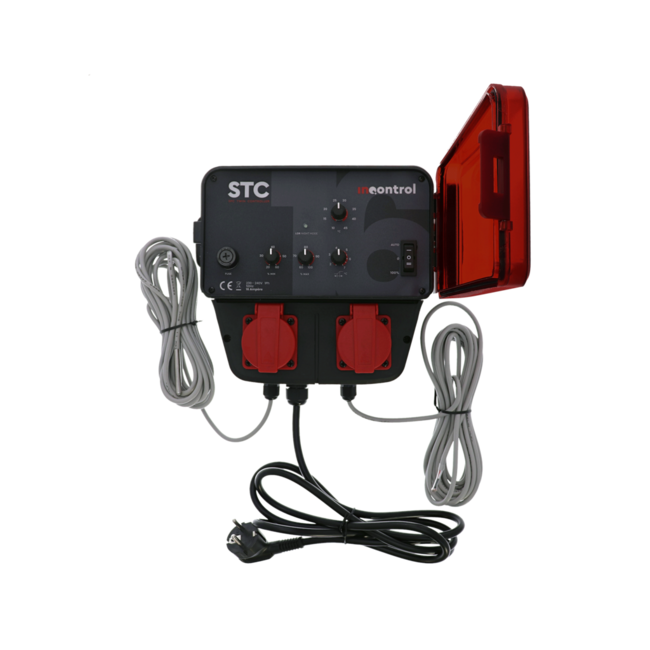

The controller has a 5-metre-long NTC temperature sensor, allowing the unit to be placed in any location.

The mechanical aspect guarantees robust controller with completely silent fan speed operation. The built-in temperature control software ensures faster response times, lower idle speeds and improved accuracy for the very best results from this type of controller.

Features

• Suitable for one or two fans/extractors
• Software-controlled
• 5-metre LDR (light sensor)
• 5-metre NTC (temperature sensor)
• Automatically regulates fan speed
• Spare fuse included
• EU | UK ready sockets

Technical data

• Adjustable capacity: Max. 16 Amp
• Input: 230v-240v 1Ph
• Frequency: 50Hz
• Dynamic range: 0.5-16.0 Amp
• Temp sensor: (Ntc 5 metres) 4K7 at 25 ̊C
• Light sensor: (Ldr 5 metres) 100K-10 Lux
• Bandwidth: range 1 ~ 7 ̊C
