Operation

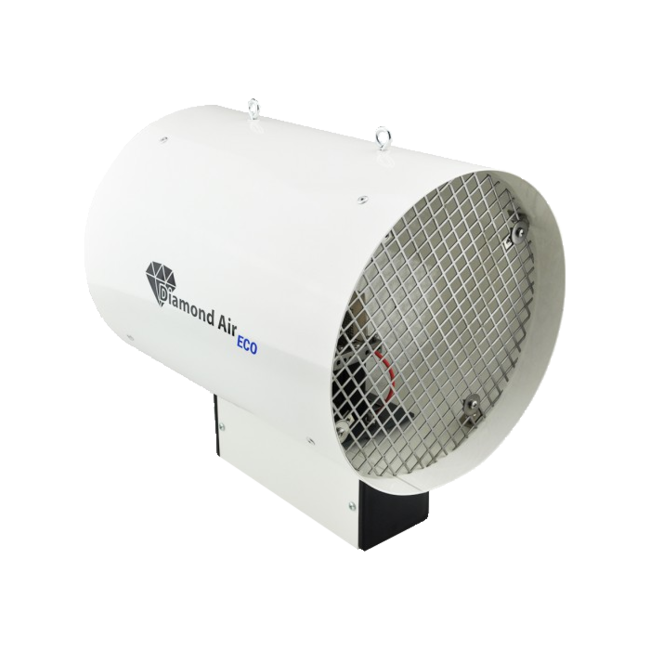

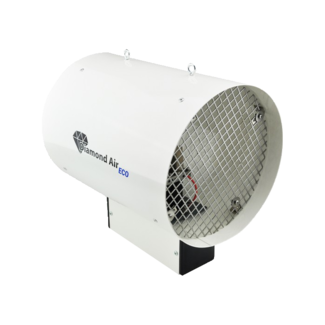

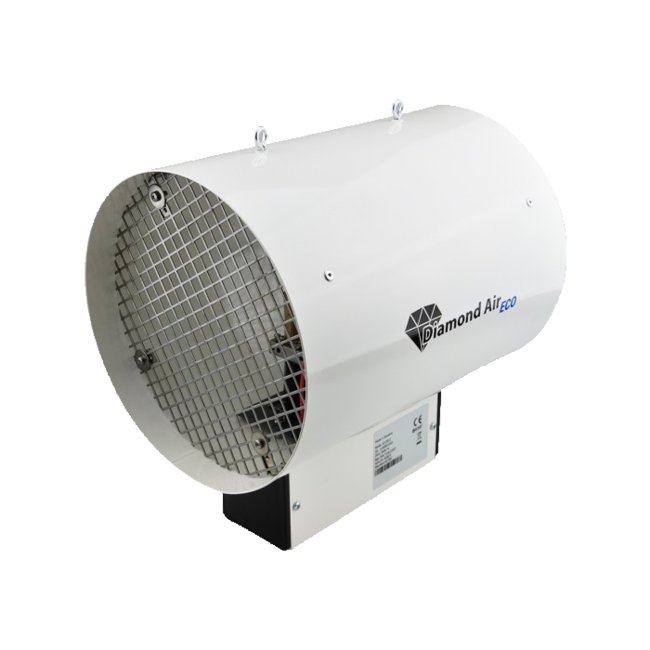

The Diamond Air Eco In-Line Ozone generator, generates Ozone (O3) through electrostatic discharge in its reactor. The Ozone gas produced by the reactor breaks down substances present in the air stream (odours, bacteria, viruses, fungi). Ozone can be recognised in nature as the fresh air after a thunderstorm.

The Diamond Air Ozone generator can be used in combination with traditional carbon filters to be 100% sure that all odours have been removed. The ozone generator also works at high humidity levels of up to 80%, although ozone production will be lower.

Advantages

• Odour is completely removed
• Improved air quality
• Kills all viruses, bacteria and fungi
• Environmentally friendly
• Energy-efficient
• No consumables
• Light and compact In-Line Ozone generator
• Plug and play
• Adjustable capacity
• Reactor easily removed by 4 rotating screws

Specifications

• Connection diameter: Ø 315MM
• Capacity: 3000m³/h
• Number of ozone plates: 5
• Connection voltage: 230V / 50Hz
• Maximum power: 50W
• Ambient temperature: -20°C / +50°C
• Max. relative humidity: 80%
• Fuse: 0.5A (230V slow-blow)

Installation
The Diamond Air ozone generator should be installed in a ventilation duct after the extractor. Use at least 5 metres of air hose after the air has passed through the air cleaner. This is to give the ozone sufficient time to react with the contaminated air.

Warning
The ozone generator uses high concentrations of ozone. Inhalation of high doses of ozone can be harmful to health. Before switching on the ozone generator, the ozone generator should be installed in a ventilation duct. The generator should only be switched on if there is an air flow in the ventilation duct going to the outside air.

The air flow passing through the ozone generator should not go into an enclosed space.
