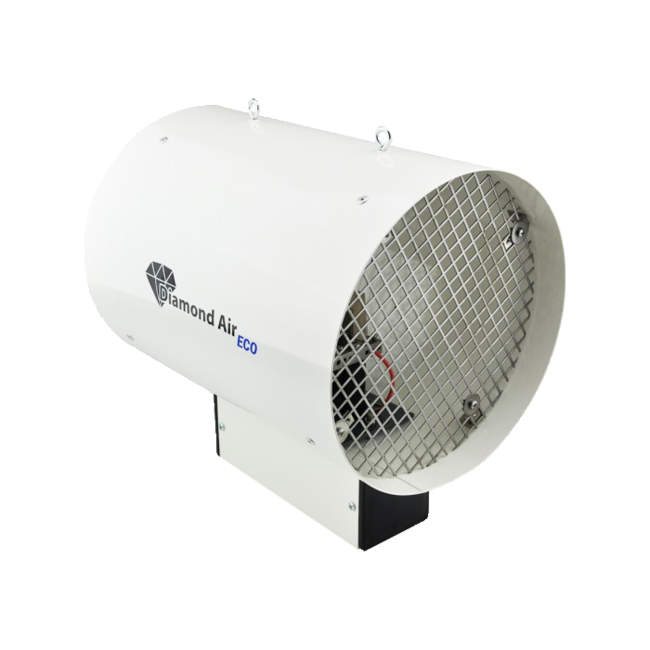

No Smell through an Ozone Generator

With the Diamond Air Eco In-line Ozone Generator, you have a system that removes odours, bacteria, viruses and moulds through electrostatic discharge, or Ozone. The Ozone gas produced by the reactor breaks down substances present in the air stream (odours, bacteria, viruses, fungi). Ozone can be recognised in nature as the fresh air after a thunderstorm.

To be 100% sure you don't get nasty odours, you can use this Ozone Generator in combination with a traditional carbon filter. Also, these generators work at high humidity levels of up to 80%, this will reduce the production of the Ozone.

With these industrial and Dutch-developed Ozone air purifiers, you have CE/ROHS approved generators. The stainless steel reactor is manufactured with powder-coated aluminium to prevent corrosion.

NOTE: The Diamond Air Eco Ozone Generator should be installed in a ventilation duct after the extractor. Use at least 5 metres of air hose after the air has passed through the air cleaner. This is to give the ozone enough time to react with the contaminated air.

Benefits of Diamond Air Eco In-line Generator

• Odour is completely removed
• Improved air quality
• Kills all viruses, bacteria and fungi
• Environmentally friendly
• Energy-efficient
• No consumables
• Light and compact In-Line Ozone generator
• Plug & Play
• Connection diameter: Ø 250MM
• Capacity: 1800m³/h
• Number of ozone plates: 3
• Connection voltage: 230V / 50Hz
• Maximum power: 100W
• Ambient temperature: -20°C / +50°C
• Max. relative humidity: 80%
• Fuse: 0.5A (230V slow-blow)
